41 Reference Colors for the sRGB / Rec.709 Color Gamut Standard
Virtually all current consumer content is based on the sRGB / Rec.709 Color Gamut Standard.
Figure 2a below shows 41 Reference Colors for the Standard sRGB / Rec.709 Color Gamut as White, Gray, and Black circles. The 10 Black circles on the outer triangle are the 100% fully Saturated Colors on the periphery. The 3 inner sets of Gray triangles are the 25%, 50% and 75% Saturated Colors between the inner White Point and the 100% Saturated Colors on the periphery. The White circle is the White Point with 0% Color Saturation.

The colors in Figure 2a have been accurately calculated to show the real colors within the sRGB / Rec.709 Gamut - the colors shown in most published Color Gamuts are wildly incorrect.

Figure 2a.   41 Reference Colors for the sRGB / Rec.709 Color Gamut Standard
Note that Complementary Colors lie directly across from one another through the White Point.
The 4 sets of triangles are the 25% 50% 75% and 100% Saturated Colors.

Uniform Color Diagrams
All color measurements are plotted on 1976 CIE Uniform Color Diagrams.
Note that the older 1931 CIE Diagrams that are published by many reviewers are highly non-uniform and are meaningless for Color Accuracy. Also the often referenced NTSC Color Gamut is from 1953 and has been obsolete for over 30 years so stop referencing it!

Absolute Color Accuracy Plots
Basic screen mode: Figure 2b below shows the measured on-screen colors for the sRGB / Rec.709 Reference Colors. AMOLED Photo screen mode: Figure 2c below shows the measured on-screen colors for the Adobe RGB Reference Colors.

Reference Colors
The Reference Colors in Figures 2b-2c are all shown as Black circles and the measured Colors for each of the Screen Modes are shown as Red circles. Color Errors smaller than the appropriate JNCD are not visually noticeable. The 1 JNCD and 3 JNCD Errors are discussed next and are shown in the Figures below.

Just Noticeable Color Difference JNCD
The on-screen colors produced by any display can be measured using a Spectroradiometer together with our proprietary DisplayMate Test Patterns. The accuracy of the colors can then be calculated using the 1976 CIE Uniform Chromaticity color space and compared to the eye's sensitivity to color. We present the color accuracy and errors here in terms of MPCD Minimum Perceptible Color Difference or JNCD Just Noticeable Color Difference, where 1 MPCD = 1 JNCD = Δ(u'v') = 0.0040 on the CIE 1976 Uniform Chromaticity Scale.

Color differences less than 1 JNCD are visually indistinguishable, while values greater than 1 JNCD are visually noticeable when the two colors are touching on-screen. When the colors are not touching and are further apart, the visual threshold for Just Noticing a Color Difference is higher. Here we will use 3 JNCD for the threshold of a visually noticeable display color difference. The 1 JNCD and 3 JNCD sizes are shown in the Figures below. Any Display Color Error less than 3 JNCD on a display is not visually noticeable and appears perfectly accurate to the eye. For an in-depth discussion and analysis of Absolute Color Accuracy see this article.

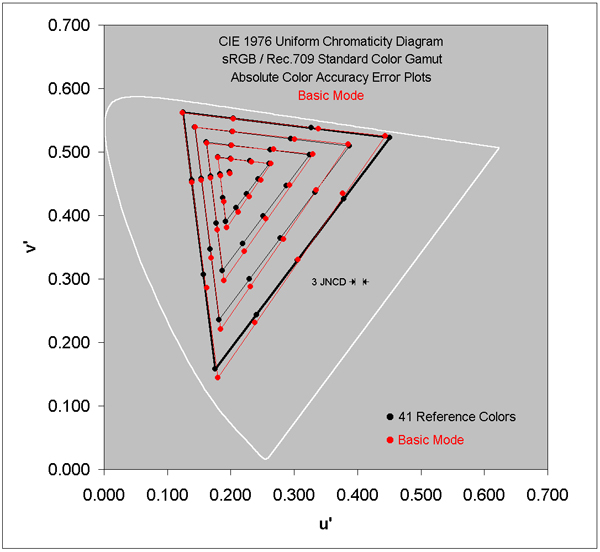

Figure 2b.   Basic Screen Mode Absolute Color Accuracy Plots
The Basic Screen Mode provides an accurate color match to the standard sRGB / Rec.709 Color Gamut.
The largest errors are in the Blue Zone, which is much less important for visual Color Accuracy.

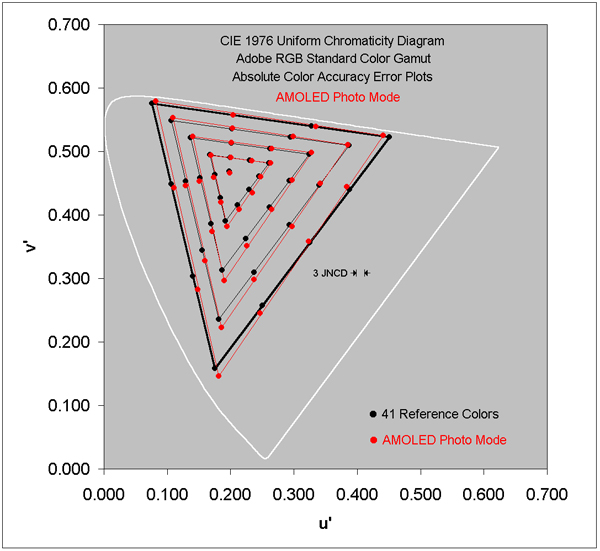

Figure 2c.   AMOLED Photo Screen Mode Absolute Color Accuracy Plots
The AMOLED Photo Screen Mode provides an accurate color match to the Adobe RGB Color Gamut.
The largest errors are in the Blue Zone, which is much less important for visual Color Accuracy.
